Bluebeam Tip: Construction Coordination Overlays

Coordination Overlays in Bluebeam Revu

The Document Comparison features in Bluebeam Revu are great for spotting differences between revisions but did you realize you can also use the Overlay Pages option for your construction coordination?

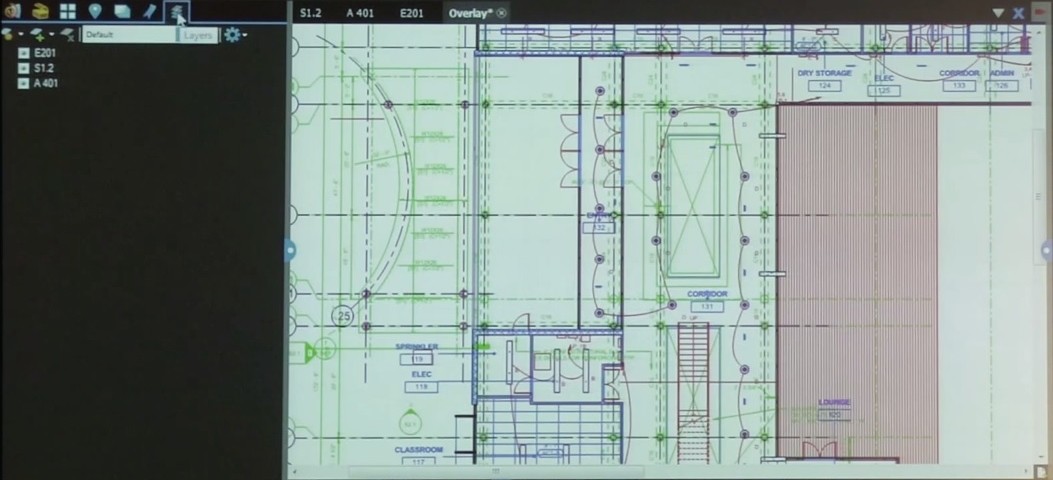

Simply select the construction disciplines you want to coordinate and assign each an appropriate color in the overlay pages dialogue box. The great part about using the overlay pages function is that each discipline (file name) will automatically come across as a layer so you can toggle each discipline off/on as you work on the coordination. In the sample below we used overlay pages with three documents: S1.2, A401 and E201 being the structural framing plan, architectural rcp and electrical wiring diagram respectively. To view your layers, use the shortcut ALT + Y or select layers from the Tab Access Menu.

Coordination Overlays in Bluebeam Revu

Bluebeam Revu is versatile and often one function serves multiple purposes. Once you overlay your coordination, you may want to assign work areas using Spaces and create a schedule for your specialty contractors, part of workface planning and the Fiatech Advanced Work Packaging (AWP) project.

Want to learn more about Bluebeam or need one on one web training for your construction team or office staff? We offer customized training for your Project Managers, Estimators and supporting office staff. To arrange for web-based Bluebeam Training using GoToMeeting, Email Me Your Contact Info.
